Used 2015 Mecal SW453-Reverse-Vico – SOLD

Thermal label printer
Automatic cleat cutting function
Manual centre support

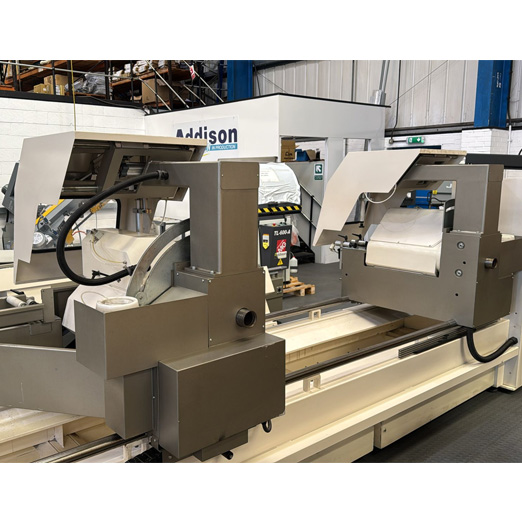

Automatic tilting of the saw heads 90° - 22.5°
Intermediate angles set on large sector plate
Digital setting of the cutting length +/- 0.1°
USB data interface
Memories for profile heights and cutting lists
4m machine can cut up to 7.4m automatically
Short and long cut cycle
Mist spray blade lubrication system
Mobile roller table with additional clamp
Add to quote
Categories: , Tags: ,
Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

dust & chip extraction unit
Maxi Vortex

Complete swarf extraction system taking from both sawblade chambers, fully compliant to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying.

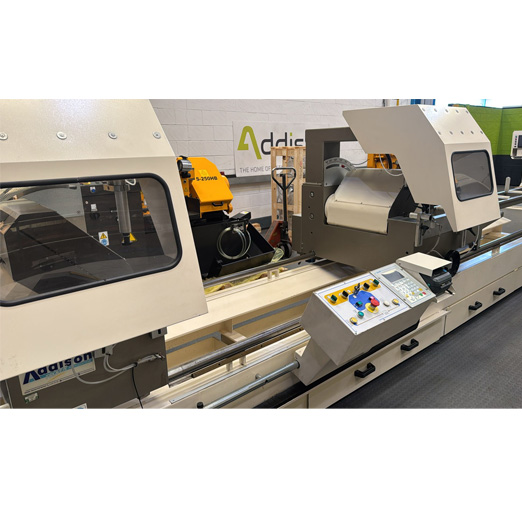

2015 Mecal SW 453 Reverse Vico..SOLD

Absolutely super condition, the best used machine we have seen for many years.

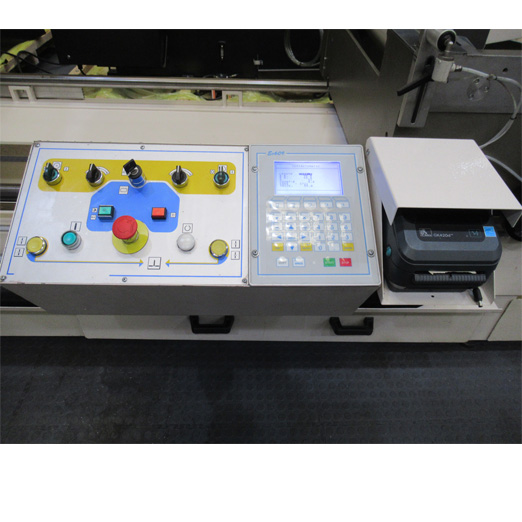

Double mitre saw with pneumatic positioned inward/outward tilting heads with  mechanical stops for intermediate angles. The large sector plate ensures the most accurate setting of angles, with default positions at 90 and +/-45 degrees PLC control system is simple to use for either quick processing of random cuts, or from pre-programmed cutting lists*. The control system has the ability to receive cutting lists from compatible external software via the USB, and print labels containing job data or bar codes for integration with CNC machining centres.

£15,800.00 + vat Delivery & Commissioning

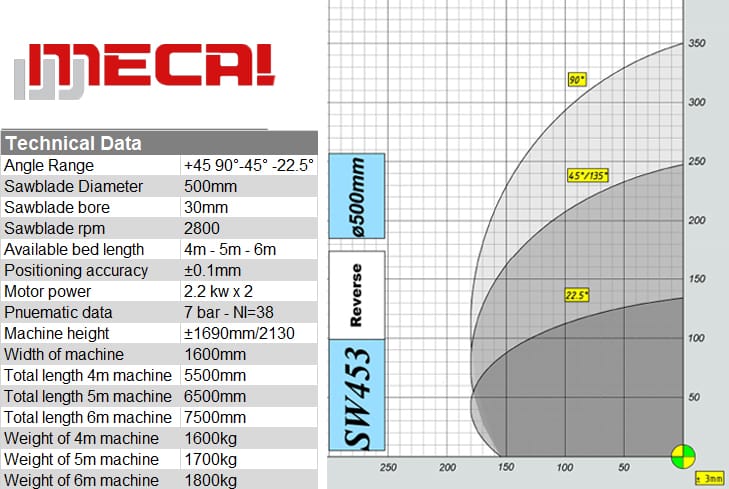

TECHNICAL DATA UNIT
Pre selected common angles (sliding stop for intermediate angles) ° 90 –  +/- 45 – 22,5
Diametre of the sawblade mm 500
Sawblade bore mm 30
Sawblade rotational speed rpm 2800
Maximum useful cutting length (dependant on version selected) mm 4000 (7450 with shuffle function)
Motor Power ( x 2 ) kW 2,2
Height of the machine mm ± 1600
Width of the machine mm ± 1200
Length of the machine , 4m. Useful cutting length mm ± 5500
Weight of the machine , 4m. Useful cutting length kg ± 1600

































Angle Setting

Pneumatic tilting between fixed 90deg and moving stop on extra large calibrated sector plate for increased positional accuracy. The 45° position has a positive location as it is the most common used angle. The angle range is 90° to -22.5°

Cutting Control

Equipped with blade stroke limiter to reduce cycle times, feed speed adjuster and standard mist spray unit. (optional Addimist pure oil micro mist available)

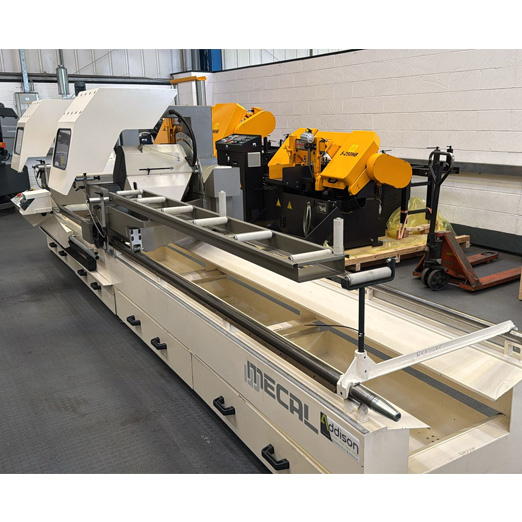

Roller Support

Fitted with a mobile roller support table and additional horizontal vice.
