USED 2012 MG TL 500 A Aluminium Saw - Image 2

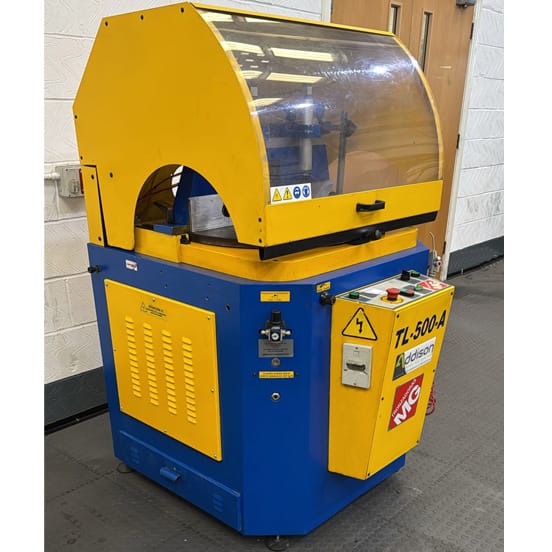

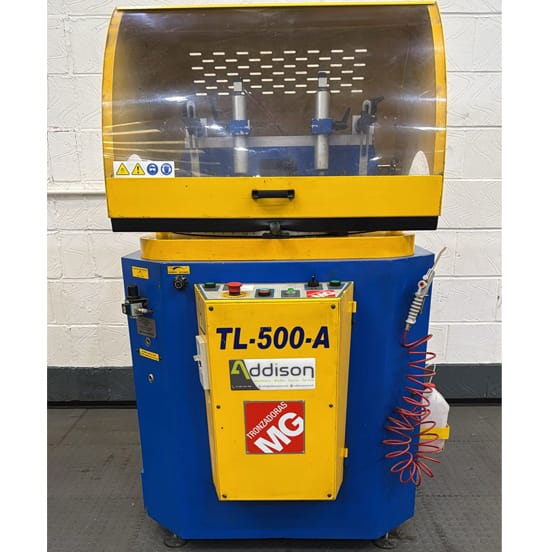

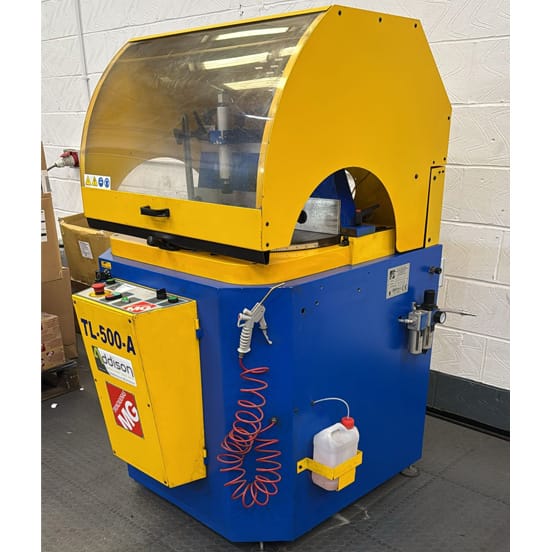

USED 2012 MG TL 500 A Aluminium Saw

Left and right mitre through 180deg +/- 90°

Hydropneumatic feeding of the sawblade

Precise control of the cutting feed rate

Moveable back fence for extending width cut capacity

Enclosed cutting zone with interlocked hood

Blade stroke limiter for fast repetition cutting

Secure pneumatic clamping

Mist spray blade lubrication

Preperation for swarf extraction

Removable chip collection drawer

Add to quote

Categories: Used Machinery, Semi-Automatic Aluminium Saws

Used 2012 Tronzadoras MG TLG 500 A

Reconditioned machine with new motor & bearings fitted, only ever cut plastic materials, (so easy life)…

£3495.00 + vat delivery and commissioning if required at additional cost.

The TL mitre saw has been proven to be dependable and highly accurate offering the highest safety protection without reducing operating effectiveness. It has an easy rotation cutting table for left/right mitre cuts through 180 degrees and a moving back fence to increase the width cutting capacity. Standard with horizontal & vertical pneumatic clamps, mist spray blade lubrication system, (option for Addimist pure oil micro mist), removable swarf drawer and a air blow cleaning gun.

______

-> Machinery Finance Offer

From £44 per week

Spread the cost of your machinery purchase with an exclusive 0% deposit offer through our finance partner, Finance For Business UK.

No initial outlay and VAT can also be deferred until reclaimed
Quick delivery – status to offer popularity and stock availability
Options to spread payments over 60 months

Find out more about asset finance and our partner Finance For Business here: Machinery Finance

______

-> Specification Table

Technical		TL-500-A
Capacity 90°	Round	180 mm
	Square	150 mm
	Rectangle	300 x 125 mm
Capacity 45°	Round	150 mm
	Square	120 mm
	Rectangle	145 x 120 mm
Motor		4 HP
Blade Diameter		Ø 500 mm
Blade Speed		3000 RPM
Blade Axis Diameter		50 mm
Maximum Cutting Height		180mm
Weight		430 kg
Dimensions		1200 x 1100 x 1500 mm
Avergae Air Consuption Per Cycle		5 Litre

Cutting Chart:

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odors or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Italy Vaccuum Maxi Vortex

High performance swarf extraction system with dual connections above and below the cutting table. Using tangential inlets that produce a highly efficient cyclone which easily out performs similar looking units without this design technology. It is fully compliant to handle aluminium, pvc, brass, plastics & copper. There are options to cope with a large range of dust producing materials as well. The steel container easily is removable for emptying. There is a clean up hose and tool with isolation damper.

Saw Blade

Ø500 mm diam TCT blade saw included

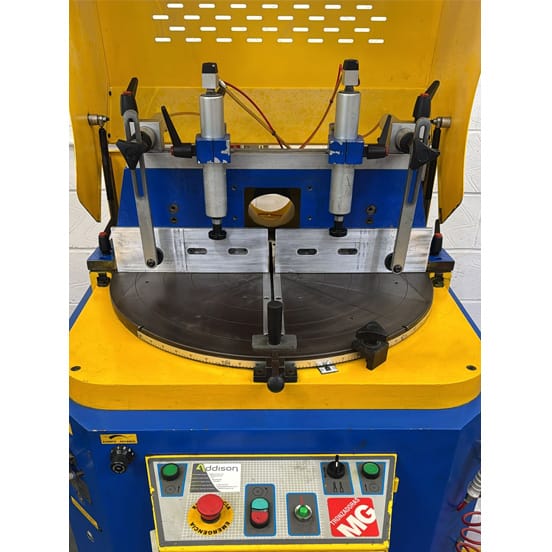

Pneumatic Clamps

2x Pneumatic vertical clamps

2x pneumatic horizontal clamps

Bimanual control to activate the blade raise

Twin pressure (low-HI) system for clamping cylinders

Adjustable backfence to increase cutting range

Adjustable cutting speed

Pneumatic lubrification system

Polycarbonate shield

Additrack 3MS

Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.

Tronzadoras MG E 1/2/3/4 Infeed Table

PVC coated input roller conveyor for Aluminium and pvc profiles, adaptable to all aluminium/pvc cutting machines with an ascendant and descendent blade saw.

MG TM-Measuring System

Tronzadoras MG TM 3 – 4 – 6 roller table with hand-wheel positioned material stop and battery LCD display of the selected cutting length. Fitted with soft coated rollers to protect the material surface finish.

MG TMDG-Measuring System

Tronzadoras MG TMDG 3 – 4 – 6 roller table with hand-wheel positioned material stop, and powered digital display of the cutting length and higher accuracy than the TM version.
