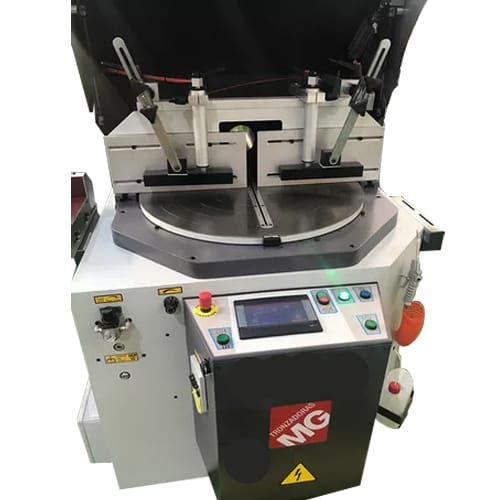

Tronzadoras MG TL 600 aluminium saw front view with hood closed

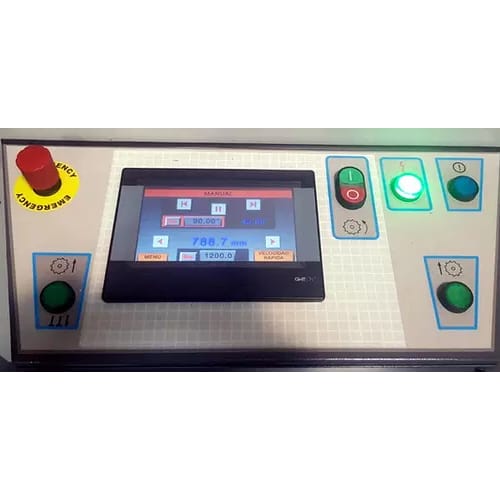

MG TL 600 AAG CNC aluminium saw control panel image
Tronzadoras MG TL 600 AAG CNC aluminium saw top view

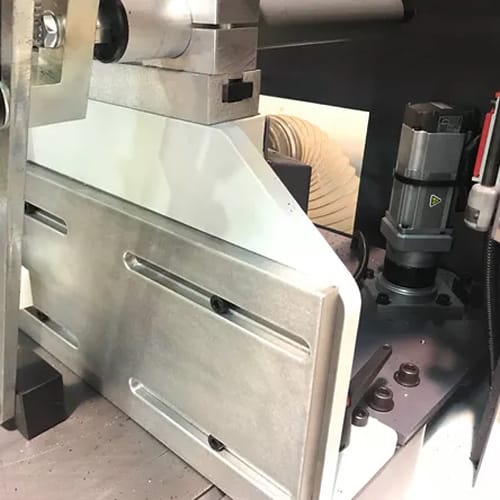

Tronzadoras MG TL 600 AAG CNC Aluminium Saw - Image 4

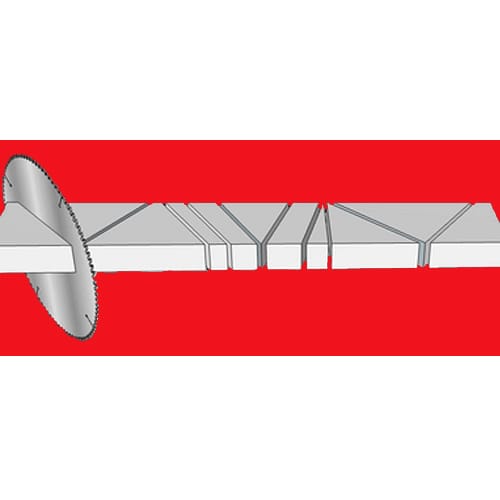

Tronzadoras MG TL 600 AAG CNC mitre cuts demonstration

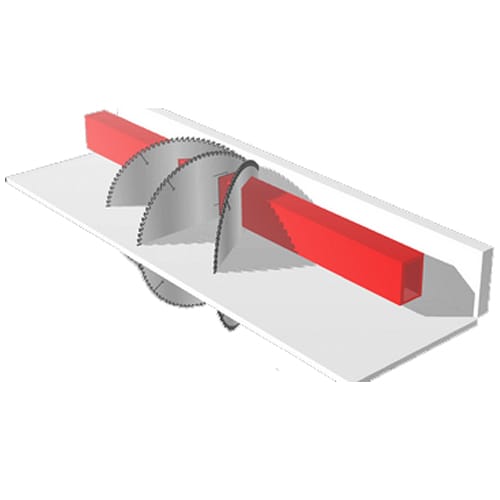

Tronzadoras MG TL 600 AAG CNC mitre image

Tronzadoras MG TL 600 AAG CNC Aluminium Saw

NC servo drive material pusher 3-4-6 meter
NC powered head rotation +/-45 deg
Touch screen HMI for cutting data input
Variable blade feed and stroke
Option for automatic material loading system
Closed cutting zone with interlocked hood
Add to quote
Categories: ,

Tronzadoras MG TL-600-AAG CNC ALUMINIUM SAW

Highly productive cutting cell comprising of large 600 mm blade semi-Automatic mitre saw with NC powered head rotation and servo driven material pushing system.  The pushing and loading elements are available in customer definable operational lengths, standard is 3-4-6 m. There are many options for the unloading side..

Technical

Automatic Cutting Angle+ 4 90° ~ – 45°
Sawblade Dimension(600 mm)
Spindle Speed3000 rpm
Motor Power4.0 hp
Table RotationServo Motor
PusherServo Motor
Standard Feed Lengths3m – 4m – 6m (custom lengths on request)
 Clamps2 x Vertical & 2 x Horizontal Pneumatic dual pressure safety system
Feed speedAdjustable
Feed strokeAdjustable
Blade lubricationStandard mist spray (optional Addimist pure oil minimal lube system)



Italy Vaccuum Maxi Vortex

High performance swarf extraction system with dual connections above and below the cutting table. Using tangential inlets that produce a highly efficient cyclone  which easily out performs similar looking units without this design technology. It is fully compliant to handle aluminium, pvc, brass, plastics & copper. There are options to cope with a large range of dust producing materials as well. The steel container easily is removable for emptying. There is a clean up hose and tool with isolation damper.
