OZ Machinery Gemini – X

Radial action for massive width capacity
Inward tilting 90 deg to -45 deg
Precision servo driven heads for cutting angle selection
Large graphical touch screen HMI with windows PC control
External linking ability (example Orgadata)
Automatic profile height measuring system (OPTION)
2 x pneumatic automatic pop up supports
Roller table attached to moving head
Fully adjustable blade stroke to reduce cutting times
Standard bar-code printer
Scroll for more information ⬇️
Add to quote
Category:

Gemini – X Double Mitre Saw

CNC 3 axis double mitre saw with radial sawing action for massive width cutting capacity. For precision sawing of aluminium and pvc extrusions, commonly used in the window and door manufacturing sectors. Configured to program remotely or receive cutting data from selected external software. 600mm sawblades.

TECHNICALUnitData
Motor powerhp4
Sawblade speedrpm3000
Sawblade diametermm600
Sawblade boremm30/32
Servo motor powerkw1.7
Mobile head transmission Rack & pinion
Minimum cut 90deg / mm450
Minimum cut 45deg / mm450
Air consumptionL / min150
Machine lengthmm9072
Machine depthmm2250
Machine heightmm1620
Machine weightkg2000





Saw stroke adjustment

Digital setting of the saw stroke to reduce cutting times

Conveyor

Roller support table for fixed head

Italy Vacuum Maxi Vortex

High performance swarf extraction system with dual connections to both fixed and mobile cutting units. Using tangential inlets that produce a highly efficient cyclone  which easily out performs similar looking units without this design technology. It is fully compliant to handle aluminium, pvc, brass, plastics & copper. There are options to cope with a large range of dust producing materials as well. The steel container easily is removable for emptying. There is a clean up hose and tool selection with isolation damper.

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

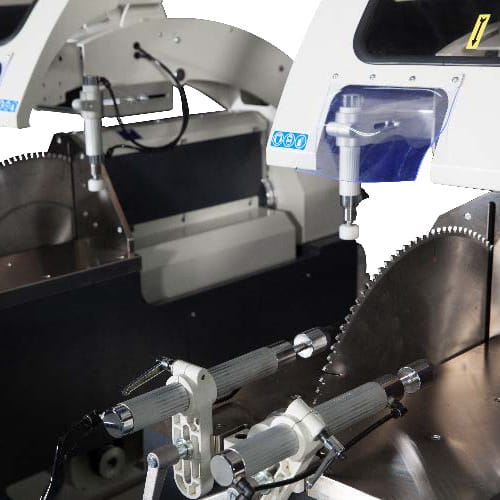

Clamps

Pneumatic vertical clamps for additional support on irregular profiles

Profile Measuring

Profile height measuring device
