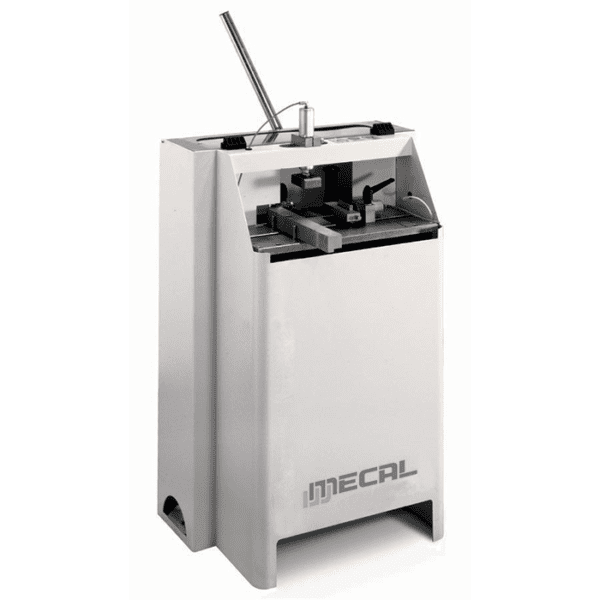

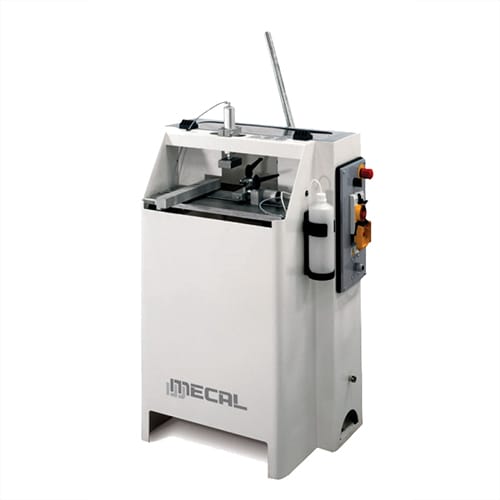

FR 701 end milling machines
Mecal FR 701 - Image 2
Mecal FR 701 - Image 3
Mecal FR 701 - Image 4
Mecal FR 701 - Image 5

Mecal FR 701

Quick tool change with cutter sleeve

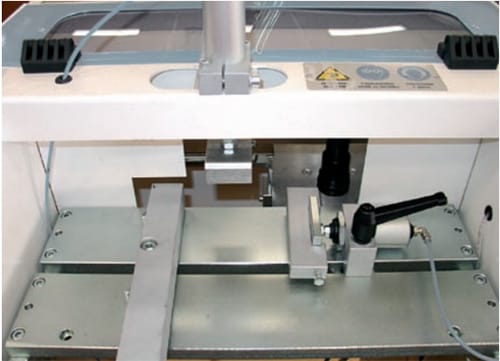

Horizontal & vertical pneumatic clamping
Mist spray cutter lubrication

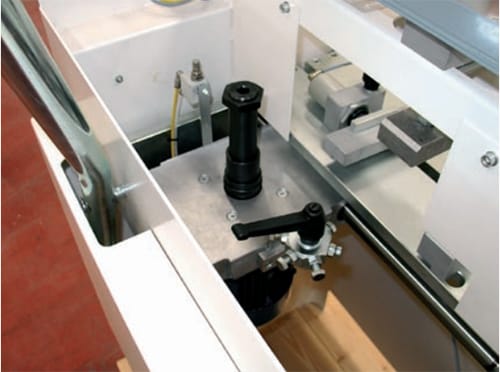

4 stage revolving depth stop

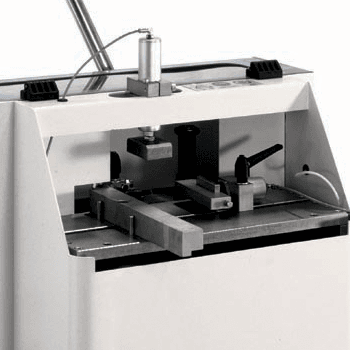

Closed cutting zone
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category: Tags: ,

Mecal FR 701 Manual End Milling Machine

Recommended for basic 90° end milling applications and ideal for the small fabricator or secondary operations in larger producers. Mainly used to prepare transom connections on aluminium, pvc window and door products. Also suitable for some curtain wall applications.

Mecal FR 701
Routing capacity250 x 120 mm
Vertical stroke120 mm
Rotating tool speed2800 rpm
Power of the motor0,75 kW
Power supply240-400 V
Compressed air supply7 bar
Length650 mm
Width550 mm
Height1300 mm
Weight90 kg



Mecal tooling
Tooling

Custom produced cutter sets and form cutters in quality TCT (drawings and connection samples may be required)

Mecal FR 701 Data Sheet
