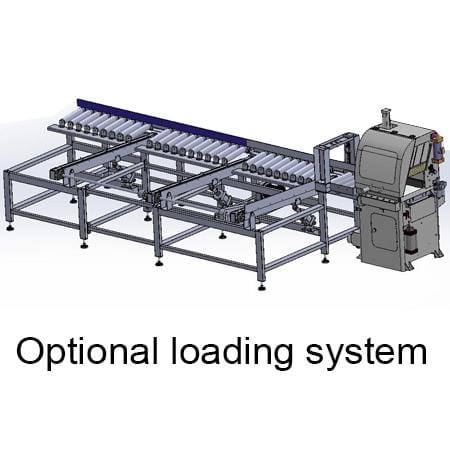

Option for automatic material loading system

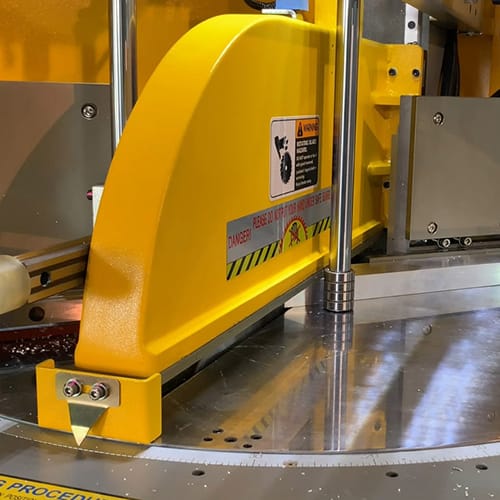

Unique main clamp/guard system

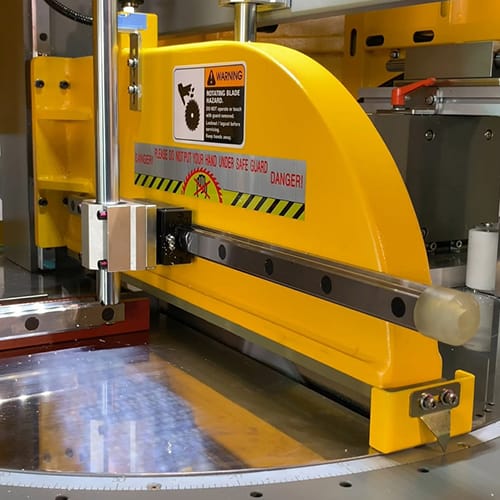

Closed cutting zone with interlocked hood
Add to quote
Categories: ,

JIH-I Auto 20R Angular Saw

Highly productive cutting cell comprising of large 500 mm blade semi-Automatic mitre saw with NC powered head rotation and servo driven material pushing system. The standard machine is manually loaded, there is an option for automatic material loading. The pushing and loading elements are available in customer definable operational lengths, standard is 6500 mm. There are many options for the unloading side from simple roller table to robotic transfer.

Detail
JIH Auto 20R
Automatic Cutting Angle+ 45° ~ 90° ~ – 45°
Sawblade Dimension24″ (500 mm)
Spindle Speed2800rpm
Motor Power7.5hp
Cutting Table Area920mm x 650mm
Cutting Table Height875mm
Table Rotation Servo Motor400w
Pusher Servo Motor750w
Standard Feed Lengths2.5m or 6.5m
Positioning Accuracy± 0.15mm
Pushing Force50kg
Positioning Speed20~50 m/min
PLC Job Memory Capacity100
HMI Type7″ Touch Screen
Machine Weight 2.5m/6.5m1100kg/1400kg
Dimensions L/W/H 6.5m Version8400mm x 1100mm x 1850mm
Cutting Capacity Chart

JIH 20 R cutting capacity chart

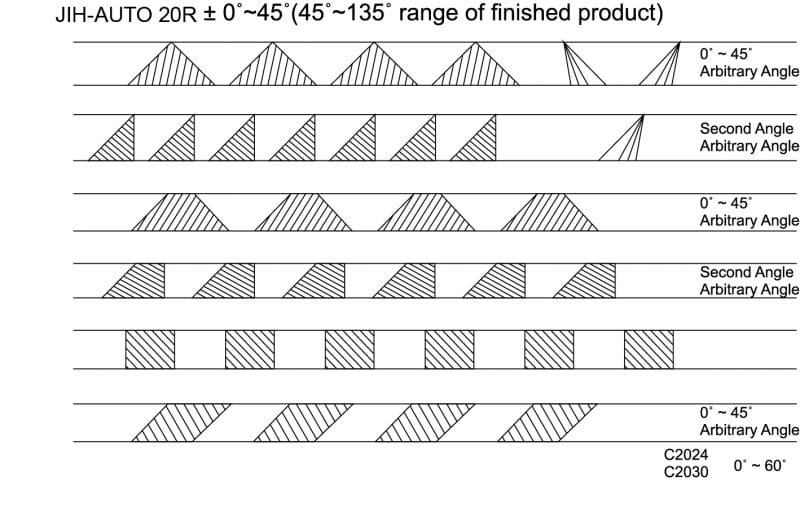

JIH 20 R finished products charts













































JIH-I Logo





Italy Vaccuum Maxi Vortex

High performance swarf extraction system  using tangential inlets that produce a highly efficient cyclone  which easily out performs similar looking units without this design technology. It is fully compliant to handle aluminium, pvc, brass, plastics & copper. There are options to cope with a large range of dust producing materials as well. The steel container easily is removable for emptying. There is a clean up hose and tool with isolation damper.

Outfeed roller table

Hydraulic Feeding

Standard feature icon
Adjustable Pressure

The pressure is adjustable to prevent distortion materials by over force.

Standard feature icon
Adjustable clamping and feeding height

The clamping and saw feeding height are adjustable according to the profile to shorten the waiting time between cuts.

Standard feature icon
X2 servo motors

Puncher system and rotary table controlled by servo motor.

Standard feature icon
Nc control

NC Control panel provides user-friendly operations.

Standard feature icon
Touch screen

Employs human/ machine interface touch sensing screen for maximum operational convenience. The controller also features a self-diagnostic function for convenient troubleshooting.

Standard feature icon
Job memory

100 suites memory – commonly used module. (12 different kinds of cutting size per suite can be set up)

The program can record the cutting time and quantity automatically. This information will be displayed for every cut and a working report offered. This  allows the process cost to be calculated more conveniently.
