OZ Machinery Gemini – VI

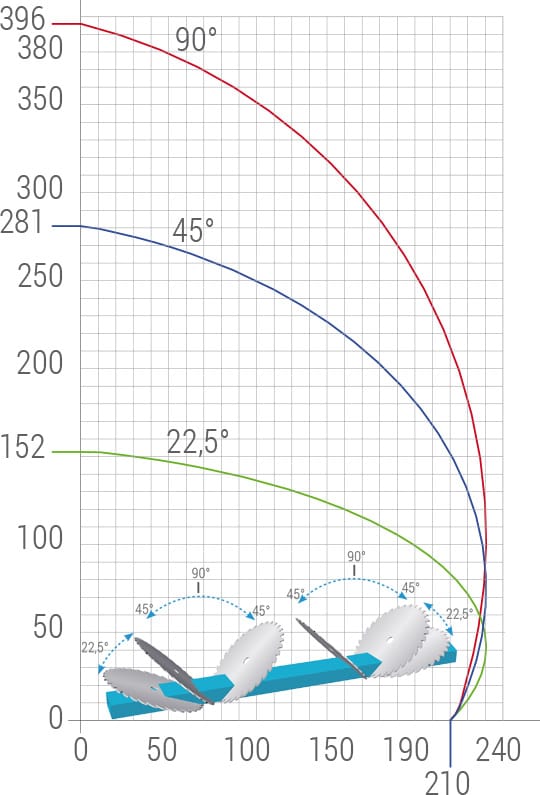

Bi-directional cutting -22.5 deg - +45 deg

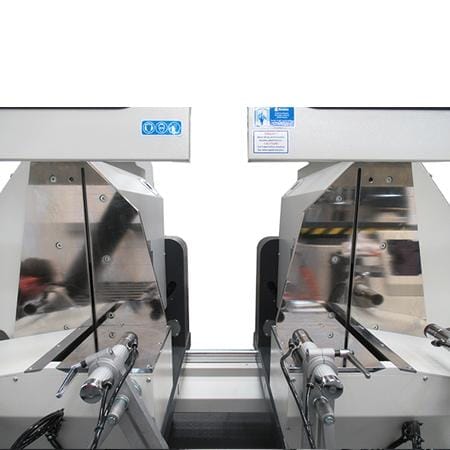

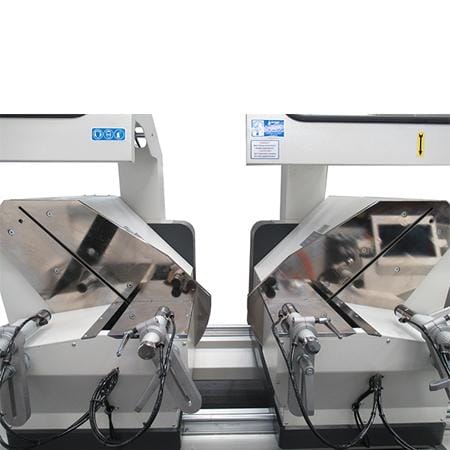

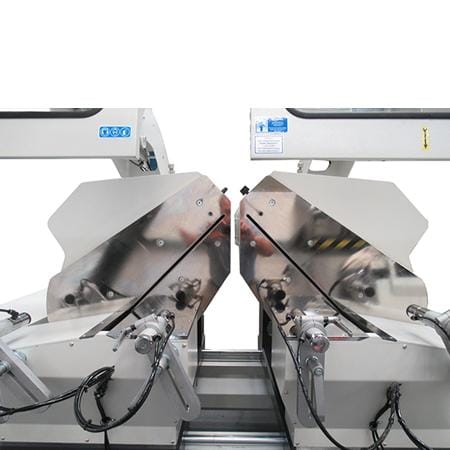

Precision servo driven heads for cutting angle selection

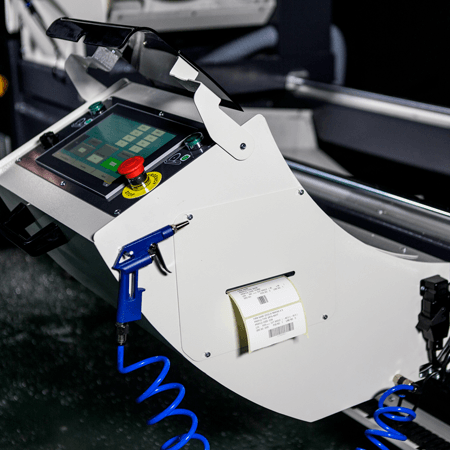

Large graphical touch screen HMI with windows PC control
5000mm bed (with standard long cut cycle can cut up to 7800mm
External linking ability (example Orgadata)
Automatic profile height measuring system (OPTION)
Automatic center support
Roller table attached to moving head
Fully adjustable blade stroke to reduce cutting times
Option for vertical vices
Option for label printer

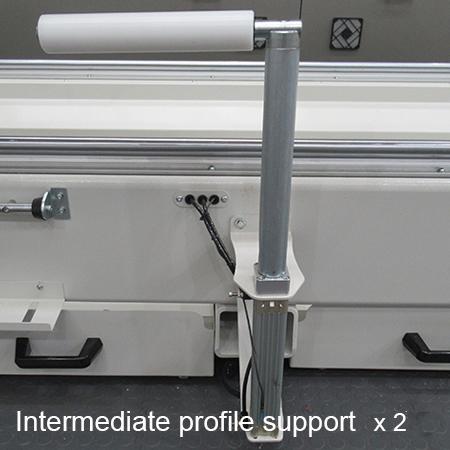

2 x pneumatic automatic pop up supports
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category:

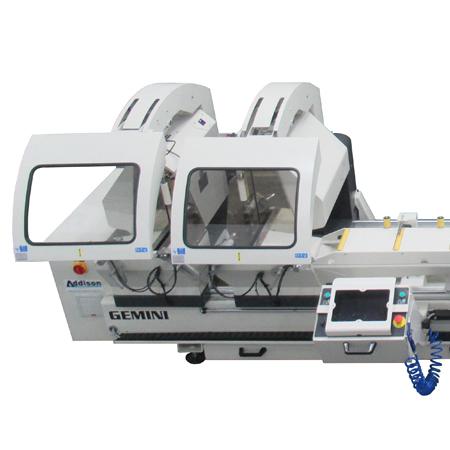

Gemini – V1 Double Mitre Saw

6000mm CNC double mitre saw with bi-directional servo drive cutting heads programmed by the cnc, 5000mm bed length. Ideal for cutting aluminium and PVC profiles of various thicknesses to different angles. Designed for larger profiles, the Gemini VI double head cutting machine enables simultaneous cutting of profile lengths from 410 mm to 5050 mm and eliminates the barriers commonly associated with cutting of 5050 mm and longer profiles.

TECHNICALUnitData
Motor powerhp4
Sawblade speedrpm3000
Sawblade diametermm600
Sawblade boremm30/32
Servo motor powerkw1.7
Mobile head transmission Rack & pinion
Minimum cut 90deg / mm410
Max cut length  90 mm / mm5050
Air consumptionL / min95
Machine lengthmm9230
Machine depthmm1910
Machine heightmm1545
Machine weightkg1760

Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Italy Vacuum Maxi Vortex

High performance swarf extraction system with dual connections to both fixed and mobile cutting units. Using tangential inlets that produce a highly efficient cyclone  which easily out performs similar looking units without this design technology. It is fully compliant to handle aluminium, pvc, brass, plastics & copper. There are options to cope with a large range of dust producing materials as well. The steel container easily is removable for emptying. There is a clean up hose and tool selection with isolation damper.

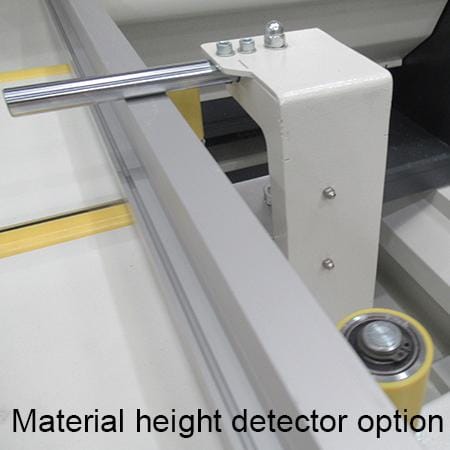

Height Measuring

Electronic profile height measuring device

Blade Stroke

Digital setting of the blade stroke to reduce cutting times

Aluminium TCT Circular Saw Blades
Sawblade

2 x 600mm TCT sawblades

Roller table

Roller support table on mobile head

Printer

Bar-Code printer
