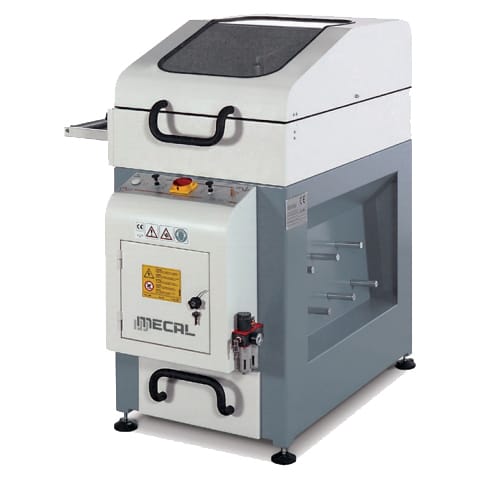

Mecal FR 703 - Image 2

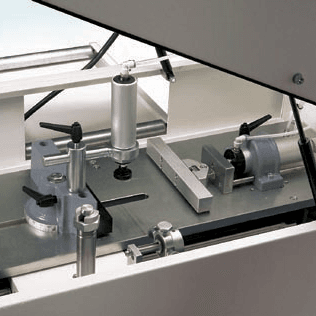

Mecal FR 703 - Image 3

Mecal FR 703

Swivel fence for mitre angles to 45°
Powered cutting action with precise control
Push button quick tool change with cutter sleeve
Horizontal & vertical pneumatic clamping
Mist spray cutter lubrication
4 stage revolving depth stop
Closed cutting zone
6 position tool holder
Material support table with 2 rollers
Swarf collection drawer
Scroll down for specification, optional extras, videos & more ⬇️
Add to quote
Category: Tags: ,

Mecal FR 703 Semi-Automatic End Miller

Recommended for basic 90° end milling applications and ideal for the small fabricator or secondary operations in larger producers. Mainly used to prepare transom connections on aluminium, pvc window and door products. Also suitable for some curtain wall applications.

FR 703
Routing capacity250×130 mm
Vertical stroke130 mm
Speed of rotating tool4850 rpm
Power of the motor2,2 kW
Height of the machine1400 mm
Width of the machine1160 mm
Length of the machine1350 mm
Weight of the machine230 kg



Mecal tooling
Tooling

Custom produced cutter sets and form cutters in quality TCT (drawings and connection samples may be required)

FR 703 Data Sheet

Related Products

  • FR 701 end milling machines

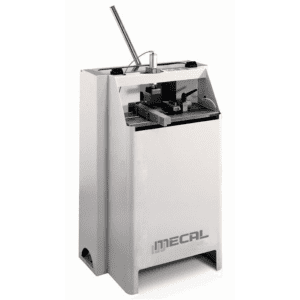

    Mecal FR 701
