Tronzadoras MG TLG 352 SA Aluminium Profile Saw

Left and right mitre through 180deg +/- 90°
Moveable back fence for wider cut capacity
Enclosed cutting zone with interlocked hood
Blade stroke limiter for fast repetition cutting
Secure pneumatic clamping
Mist spray blade lubrication
Preperation for swarf extraction
Add to quote
Category: Tags: , ,

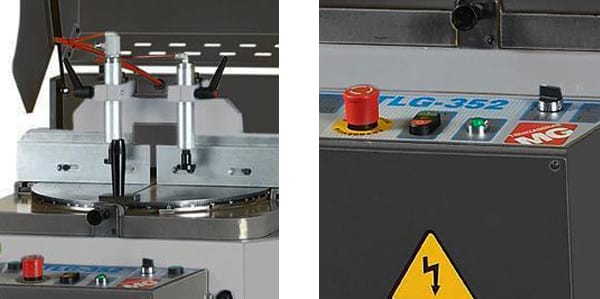

Tronzadoras MG TLG 352 SA

Manual action mitre saw with pneumatic vertical vices (option for horizontal) and mist spray blade lubrication. Easy turn cutting table with left/right mitre cutting through 180 degrees and a back fence that is adjustable to increase the width capacity.

TechnicalTLG-352-SA
Capacity 90° – Round125 mm
Capacity 90° – Square110 mm
Capacity 90° – Rectangle175 x 75 mm
Capacity 45° – Round105 mm
Capacity 45° – Square85 mm
Capacity 45° – Rectangle100 x 80 mm
Motor2 HP
Blade Diameter Ø 350 mm
Blade Speed3000 RPM
Blade Axis Diameter32 mm
Maximum Cutting Height125 mm
Weight180 kg
Dimensions870 x 710 x 1435 mm
Average Air Consumption Per Cycle2 Ltr
Working Height970 mm
Cutting Chart:

TLG 352a cutting chart





Addimist saw lubricant system image
Addimist

Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.

Italy Vaccuum Maxi Vortex

High performance swarf extraction system with dual connections above and below the cutting table. Using tangential inlets that produce a highly efficient cyclone  which easily out performs similar looking units without this design technology. It is fully compliant to handle aluminium, pvc, brass, plastics & copper. There are options to cope with a large range of dust producing materials as well. The steel container easily is removable for emptying. There is a clean up hose and tool with isolation damper.

MG digital angle display image
MG Digital Angle Display

Digital display of the cutting angle, accurate to 0.1deg, (factory fit option)

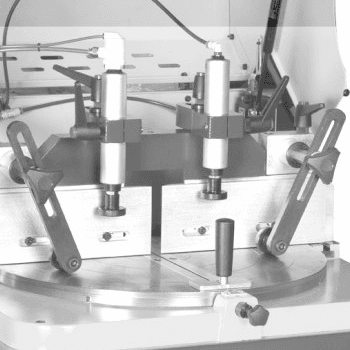

MG TLG Horizontal Clamps Image
MG TLG Horizontal Clamps

Pair of horizontal clamps for additional clamping support.

Digital angle display by linear encoder

Automatic OPEN/CLOSE hood

Laser line

Connection with vacuum cleaner (ON/OFF)

LED Lighting

350mm saw blade image
Saw Blade

Ø350 mm diam  TCT blade saw included

Standard feature icon
Miter turning table from -60º to +60º

Standard feature icon
2HP motor

Standard feature icon
2x Pneumatic vertical clamps

Standard feature icon
Twin pressure (low-HI) system for clamping cylinders

Standard feature icon
Adjustable backfence to increase cutting range

Standard feature icon
Manual raise of blade

Standard feature icon
Pneumatic lubrification system

Standard feature icon
Polycarbonate shield ​

Additrack 3MS roller tracking table
Additrack 3MS

Roller support table with manual set material stop and graduated scale. 3000mm long with 280mm wide rollers (100kg point loading) available with steel rollers and neoprene coated rollers for aluminium and materials with a sensitive surface finish. Adjustable support legs are available together with connection brackets. The modules can be joined for longer lengths.

MG TM-Measuring System Image
MG TM-Measuring System

Roller table with hand-wheel positioned material stop and battery LCD display of the selected cutting length. Fitted with soft coated rollers to protect the material surface finish.

Mg TMGD Measuring system
MG TMDG-Measuring System

Roller table with hand-wheel positioned material stop, and powered digital display of the cutting length and higher accuracy than the TM version.

MG Autopos-Measuring System for aluminium upcut saws
MG Autopos-Measuring System

Roller table with NC positioned material stop, touch screen HMI and memories for storing multiple jobs. There is also a version with USB for easy office programming.

TLG 352 SA Data Sheet
