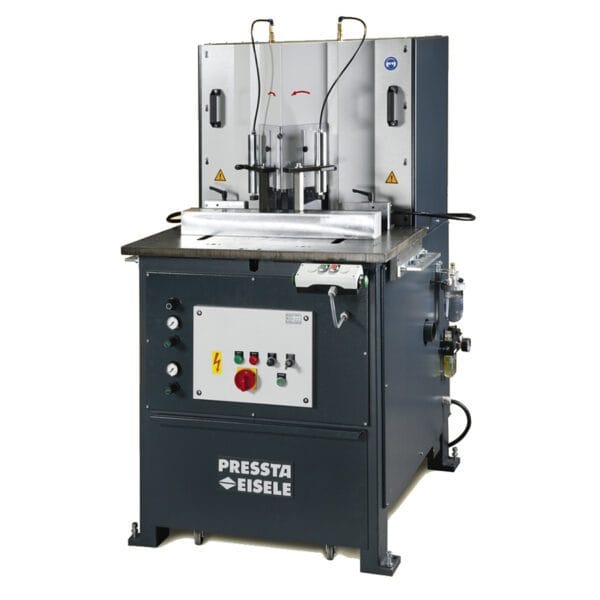

A very versatile and compact machine that can be used as a double mitre saw or notching saw. Key applications include; refrigeration, window and door production, sign manufacturing, office partitioning, furniture manufacturing, ventilation and air management, automotive, marine windows and air conditioning.
| Max cutting width | 95mm |
| Max cutting height | 125mm |
| Sawblade diameter | 400mm |
| Motor power | 3kw |
| Spindle speed | 2800 rpm |
| Machine weight | 460kg |
| Footprint | – |
Pure oil micro-mist blade lubrication system recommended over the standard soluble system, as it delivers a high performance neat oil in minute highly controlled doses. Giving a cleaner working environment with no odours or risk of skin irritation sometimes connected with soluble fluids. Each dose cane be scaled by adjusting the size of each pulse and the frequency of each pulse.
Complete swarf extraction system taking from both sawblade chambers, fully complaint to handle aluminium, pvc, brass, wood, copper and composite materials. The steel container is removable for easy emptying, and the filter bags are maintained with either the standard manual shake lever or the optional pneumatic shake.
