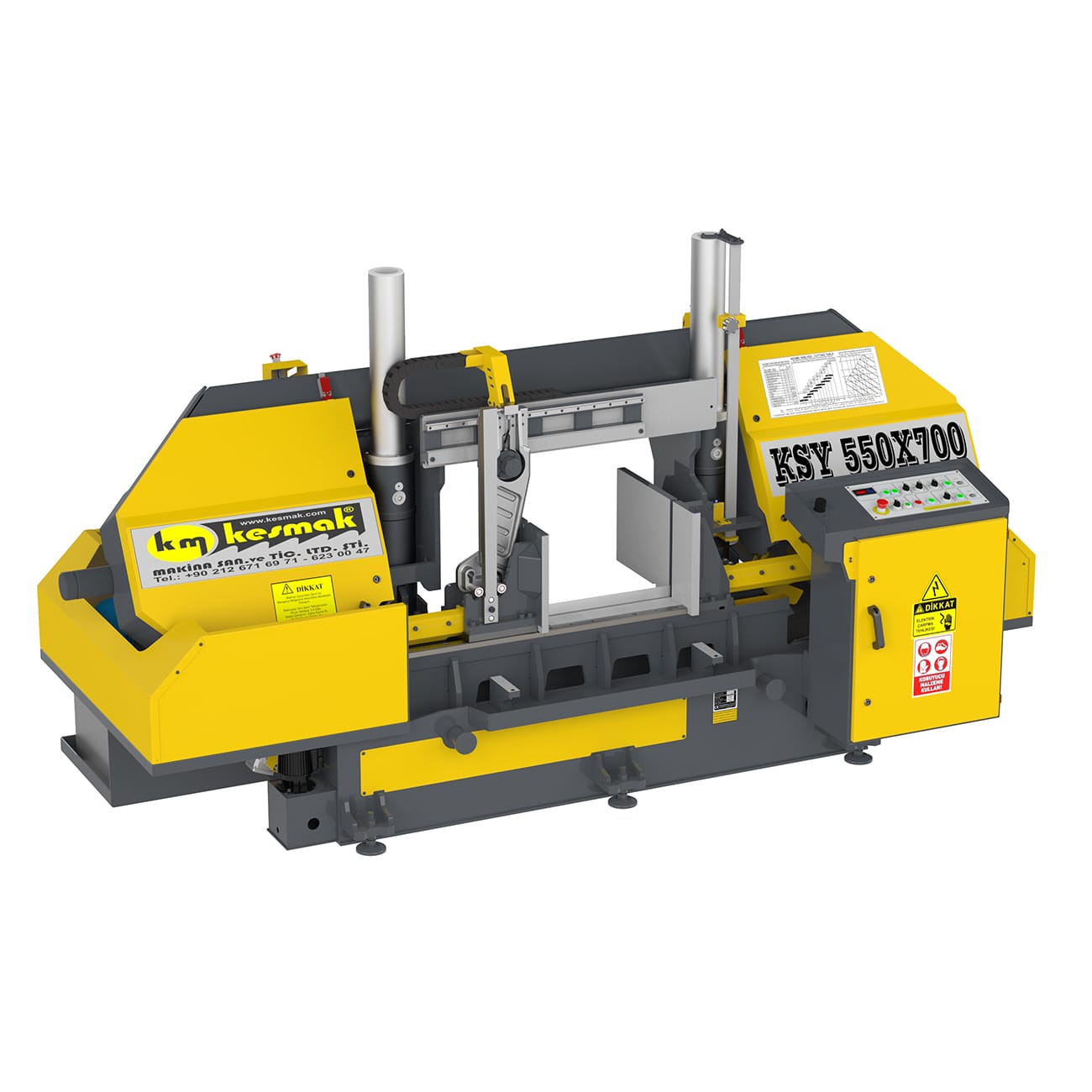

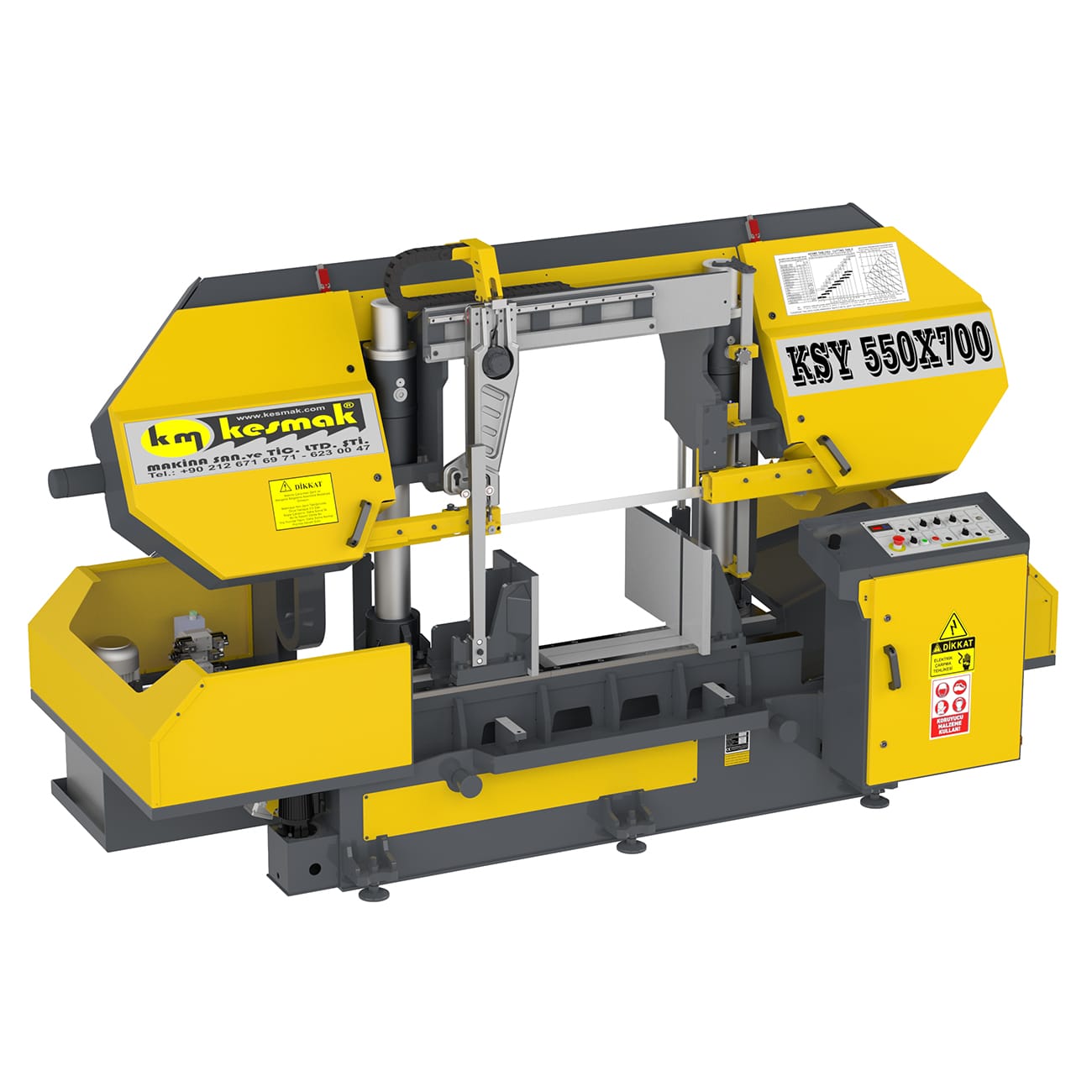

Kesmak KSY 550-700 Horizontal Band Saw

Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
vice stroke synchronized with guide arm
Blade breakage detection & auto shutdown
Inclined cutting head to extend blade life
Blade cleaning brush

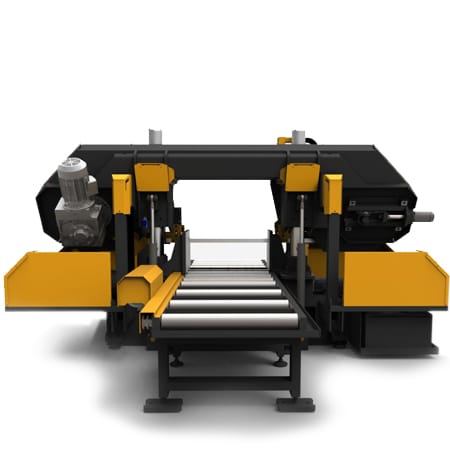

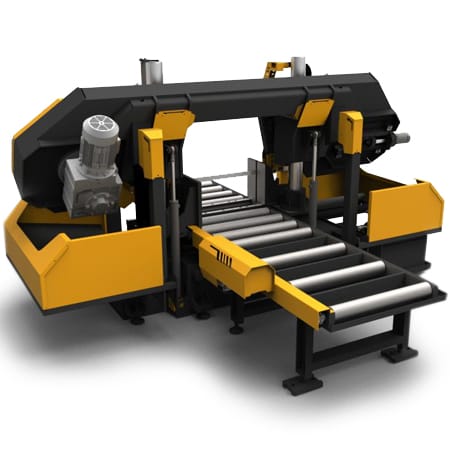

Roller table
Powered swarf remover

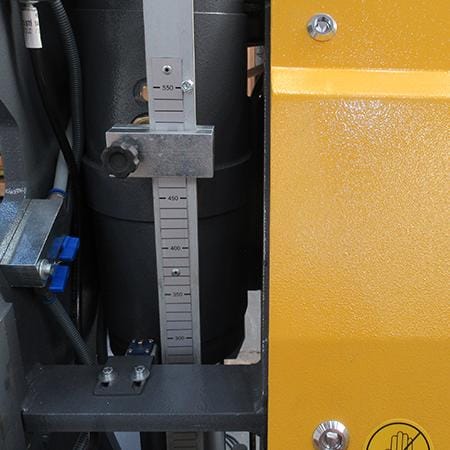

Bow return height selector with metric scale
Scroll for more information ⬇️
Add to quote
Category:

Kesmak KSY 550-700 Horizontal Band Saw

Semi automatic twin column horizontal band saw for general production cutting of all types of steel and non ferrous metals.

Technical SpecificationsKSY 550 x 700 band saw
Capacity 90° – RoundØ 550 mm
Capacity 90° – Square550 x 550 mm
Capacity 90° – Rectangle550 x 700 mm
Blade Drive4 kW
Hydraulic Pump1,1 kW
Coolant Pump0,12 kW
Swarf Conveyor0, 18 kW
Blade Size6850 x 41 x 1,3 mm
Feeding Height520 mm
Vice Maximum Opening700 mm
Vice Minimum Opening90 mm
Vice Height345 mm
Height – Width – Length1850 x 1500 x 3450 mm
Weight3650 kg

Kesmak button









Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Addimist saw lubricant system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Upper Clamp System

Vertical hydraulic vice used for cutting bundles and rafts of material.

Curve Cutting Sensor

A device for measuring the vertical tolerance, if the user defined parameter is exceeded the machine with end the cutting cycle

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

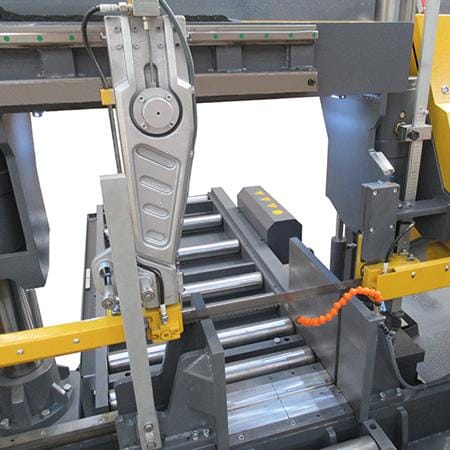

Hydraulic Blade Guide

Solid carbide precision blade guides that are automatically tensioned hydraulically and relaxed when not in use.

Hydraulic Vice

Full stroke hydraulic vice

Hydraulic Blade Tensioning Image
Hydraulic Blade Tension

Exact blade tension is applied using a hydraulic system

Synchronised Guide Arm

A very useful device that automatically synchronised the moving guide arm with the vice position. This guarantees optimum blade support at all times preserving blade life and optimising cutting performance.

Swarf Conveyor

Helical type powered swarf removal system.

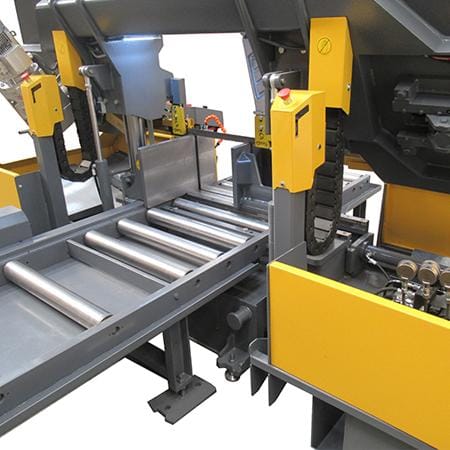

Roller table

2000mm roller support table with 7 rollers (image illustrates the optional powered unit)

Cutting Control

Control panel with inverter setting of the blade speed and precise control of the hydraulic down feed.

Cutting Stroke

Adjustable upper and lower limits for blade stroke to reduce cutting cycle times. Easily accessed from the front of the machine.

Roller System

Standard and custom length modules of free roller, or powered roller tables with chain and reduction gearbox transmission.

KSY 550X700 Data Sheet
