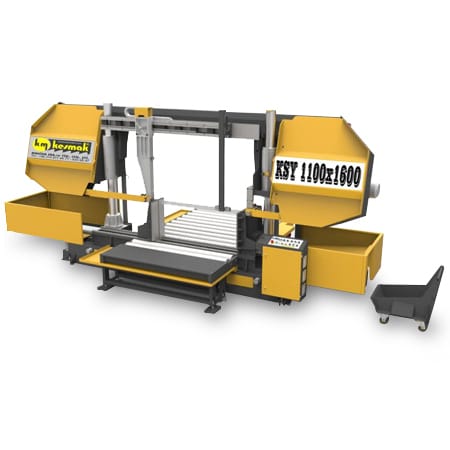

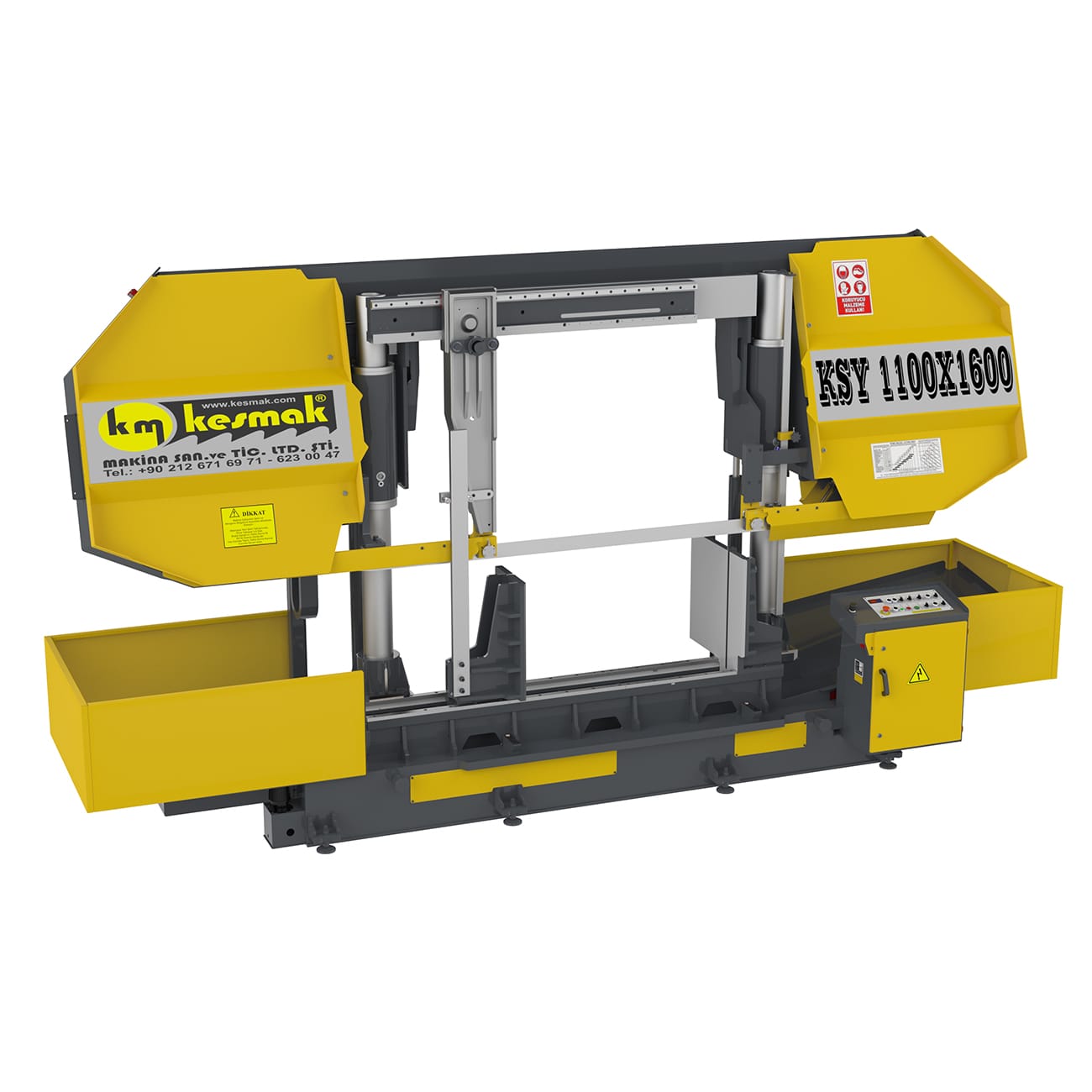

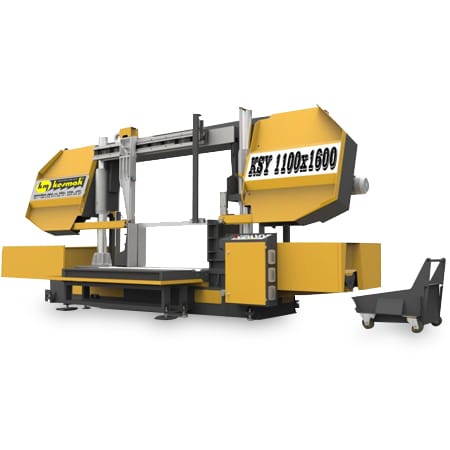

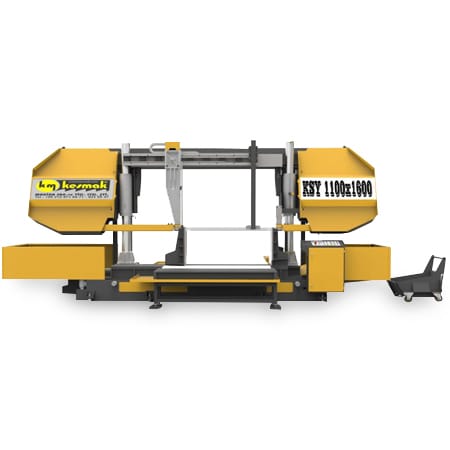

Kesmak KSY 1100-1600 bandsaw
Kesmak KSY 1100-1600 bandsaw - Image 2
Kesmak KSY 1100-1600 bandsaw - Image 3
Kesmak KSY 1100-1600 bandsaw - Image 4
Kesmak KSY 1100-1600 bandsaw - Image 5

Kesmak KSY 1100-1600 bandsaw

Strong stable twin column design
Large width cutting capacity
Full stroke hydraulic vice
Split vice for holding stock and cut piece
Hydraulic blade tensioning
Inclined cutting head to extend blade life
Blade cleaning brush
Roller table
Scroll for more information ⬇️
Add to quote
Category:

Kesmak KSY 1100-1600 bandsaw

Semi automatic twin column horizontal bandsaw for general production cutting of all types of steel and non ferrous metals.

TECHNICAL SPECIFICATIONSKSY 1100 x 1600
 Capacity 90° – RoundØ 1100 mm
 Capacity 90° – Square1100×1100 mm
 Capacity 90° – Rectangle1100×1600 mm
Main Motor11 kW
Coolant Motor0,12 kW
Hydraulic Motor2,2 kW
Conveyor Motor0,18 kW
Blade Size1,6x80x11720 mm
Coolant Tank Capacity195 LT
Hydraulic Tank Capacity36 LT
Feeding Height500 mm
Height-Width-Length3000x1600x5700 mm
Weight8500 kg



Kesmak find out more





Band saw battery Laser Line Option Image
Laser Line

Either a quality Addison fit German battery unit or factory fit powered item.

Bundle Vice

Hydraulic vertical vice for bundle cutting, essential when bundle or raft cutting round tube or bar.

Addimist saw lubricant system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

Swarf Brush

Fully adjustable swarf brush, essential for maximising blade life and improving cut finish.

Hydraulic Blade Guide

Hydraulic system to activate the solid carbide precision pressure guides, applying exactly the right force to ensure cutting accuracy and maximum performance without damaging the sawblade.

Vice

A full stroke quick acting hydraulic vice with split design to clamp both sides of the sawblade

Hydraulic Blade Tensioning Image
Blade Tension

Hydraulic blade tensioning system applies a measured and precise force to ensure maximum performance and blade life.

Swarf Conveyor

Mechanical screw type swarf conveyor

Manual Height Adjustment

Setting of the stroke upper ad lower limits to reduce cycle times.

Arm Moving System With Vice

The mobile guide arm is automatically synchronised with the vice position ensuring maximum blade life and performance without operator intervention.

Curve Cut Control System

Device for monitoring the vertical cut accuracy, if the user defined tolerance is exceeded the machine will stop cutting.

Powered Roller Table

Powered roller table modules with electric motor, gearbox and chain transmission for incrementing heavy material to the cut position.

KSY1100x1300-1600-Data-Sheet.pdf
