JIH-CNC 6500H
JIH-CNC 6500H - Image 2
JIH-CNC 6500H - Image 3
JIH-CNC 6500H - Image 4
JIH-CNC 6500H - Image 5
JIH-CNC 6500H - Image 6
JIH-CNC 6500H - Image 7
JIH-CNC 6500H - Image 8

JIH-CNC 6500H

Ultra heavy construction for steel and aluminium
available in 3500mm to 6500mm X axis
Tee slot primary table for working short and long pieces
Pneumatic and hydraulic clamps available
24 tool automatic magazine
Available in 4 axis with rotating table
Central lubrication of all slide ways
Zero backlash transmission on all axis
Add to quote
Category:

JIH 6500-H

Heavy duty 3 axis CNC for machining steel and heavy aluminium profiles and solids. The machine has the ability to work long lengths and single or multiple small pieces.

JIH6500-H
Stroke
Technical
X Axis StrokeStandard 6500mm (optional 4500mm x 5500mm)
Y Axis StrokeStandard 510mm (optional 650mm)
Distance from Spindle Nose to TableMin 160mm to max 670mm
Table
Table Design5 Tee slot 94mm centres
Table Width450mm
Max Load1000kg
Spindle
Speed8000 rpm (optional 10-12000 rpm)
Motor Power11kw 15hp
Spindle TaperBT40 (Opt. BT50 / 6000 rpm)
Feed Speeds
X Axis40 m/min with rack feed (Opt. ball screw 24 m/min)
Y Axis24 m/min with ball screw
Servo Motors (X – Y – Z)5kw – 3.5kw – .5kw (Mitsubishi)
General
Magazine Capacity24 tools
ATC TypeArm Type
Tool HolderBT40
Pull Stud45°
Max Tool Length100mm
Max Tool Weight7kg
Machine Weight(6500mm) 21000kg
Machine Dimensions1200 x 3100 x 3100 mm

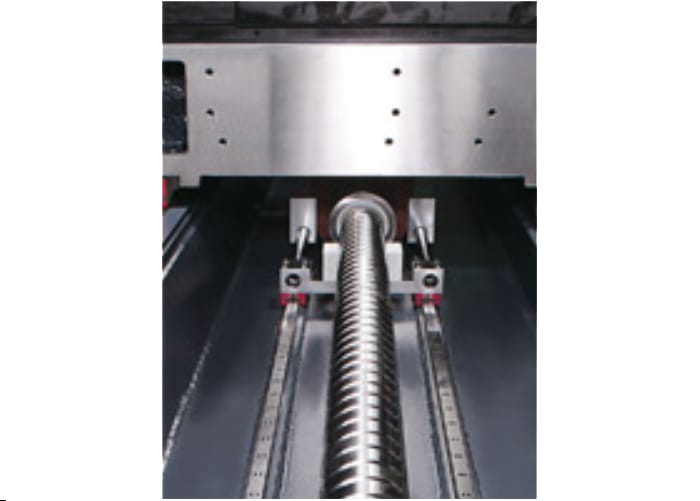

High Precision Gear Reducer

The X-axis movement is driven by a servo motor and transmitted through high precision ball screw with gear reducer. This special design not only produces powerful driving force, but also provides high positioning accuracy on the X-axis.

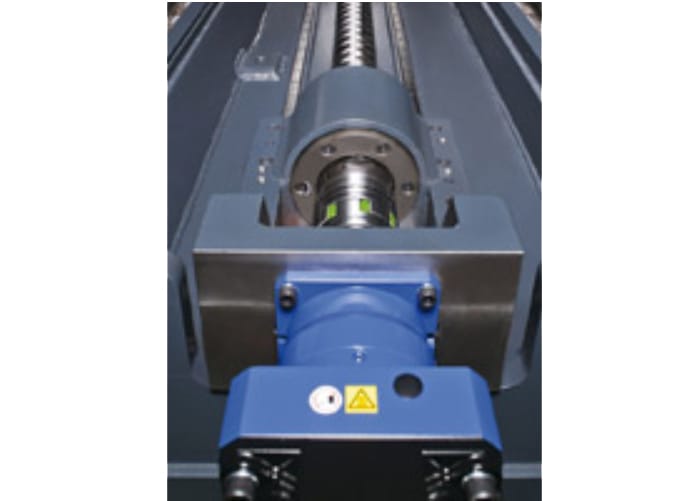

Ball Screw Support

The X-axis is transmitted through a ø80 mm extra-large ball screw, which is supported by two blocks to improve self-deflection of the screw. This helps to upgrade positioning accuracy on the X-axis.

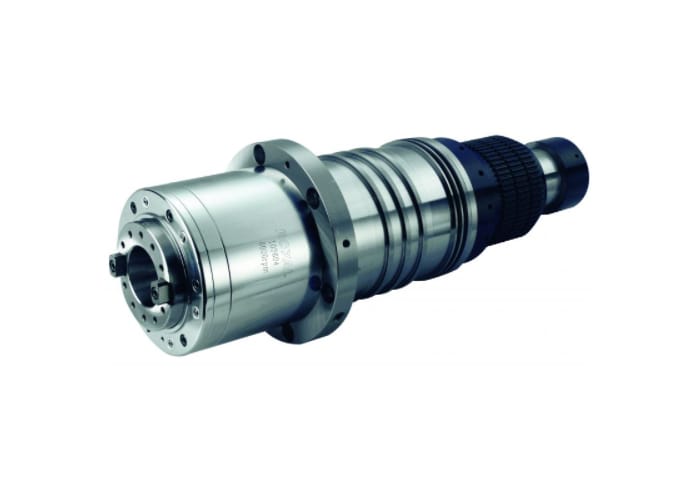

Belt-Drive Spindle

BT-50 8,000 R.P.M.

Gear Box Type Spindle

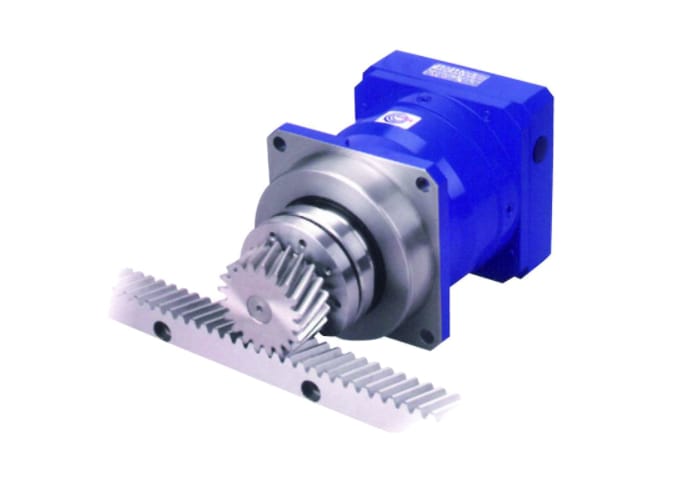

Planetary Gear Reducer

optional feature icon
Screw Type Chip Conveyor

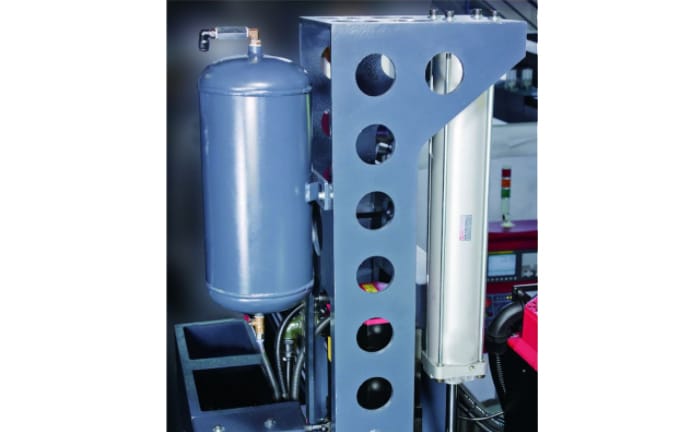

Pneumatic Balance On Z-AXIS

  • The Z-axis movement is balanced by an air cylinder, allow the Z-axis to move more smoothly.
  • The pneumatic balance system is equipped with and accumulator to supply stable air flow at all times.

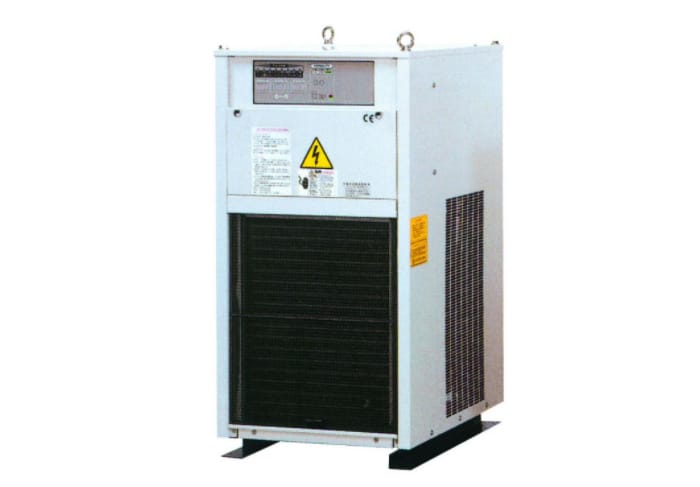

Spindle Cooler

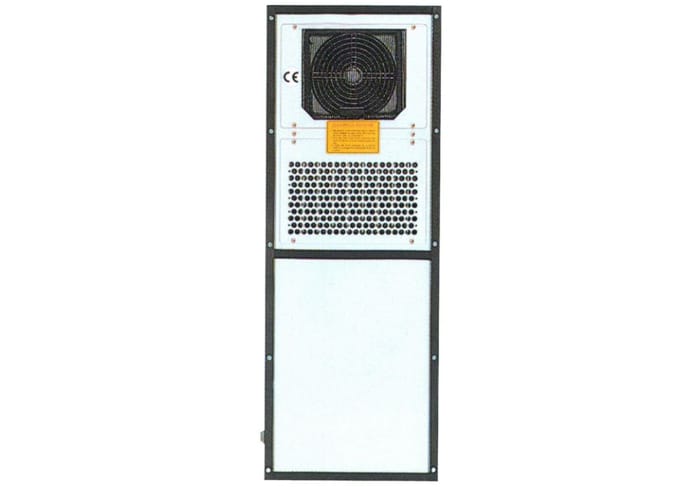

Heat Exchanger for Electrical Cabinet

Chain Type Chip Conveyor

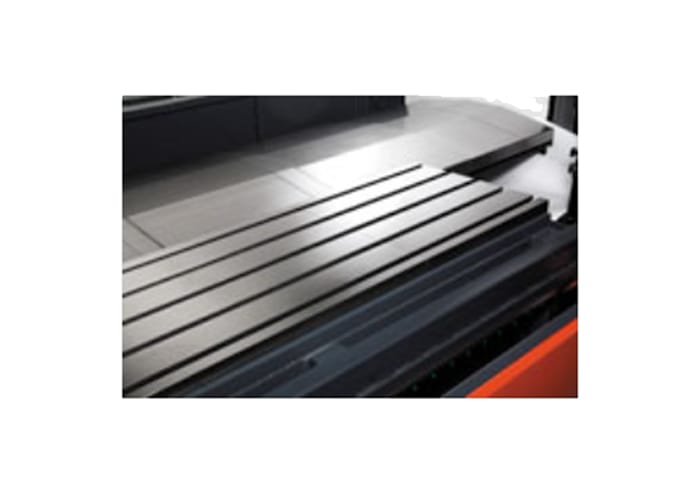

5 Groove T-slots Table

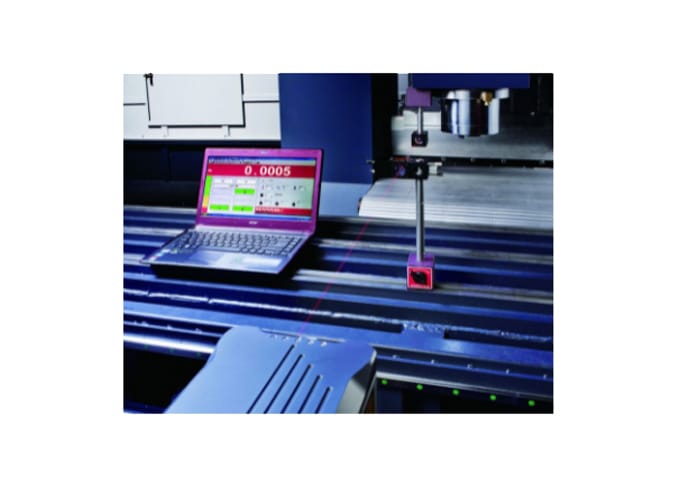

Laser Interferometer

After each machine has been assembled, the manufacturer’s experienced personnel applies a Laser interferometer to inspect and calibrate ball screw pitch error and backlash, positioning accuracy, as well as repeatability on the X, Y and Z-axes. Through the laser inspection process, they can guarantee high feed accuracy on three axes as well as overall machining accuracy.

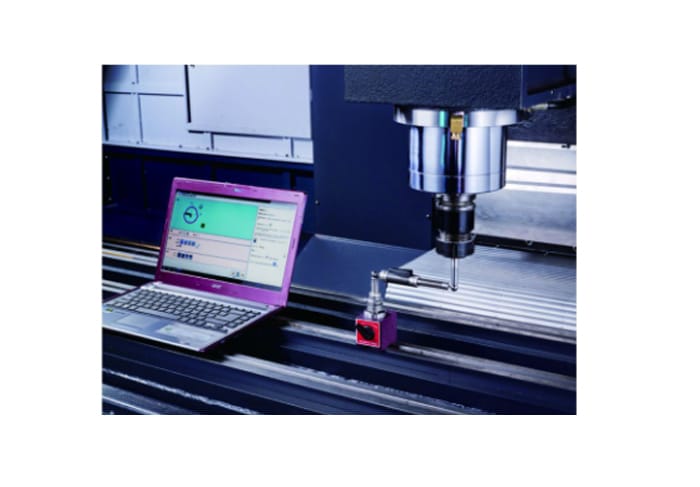

Ball Bar Test

To assure the highest structural mechanical assembly accuracy, and to eliminate the reverse spike phenomenon, all bar tested during the assembly processes. The test will calibrate the machine to the optimum status, thus extend the life time of axial ball screw and slide ways.
