Everising S-330 HE horizontal band saw

NC control of the cutting length
Colour touch screen
20 programs for different cut lengths
Piece separation for optimum performance
Multiple indexing with auto kerf compensation
Detachable hydraulic bundle vices
Hydraulic centreless swarf remover
Material height sensor with rapid approach
34mm wide sawblade for precise rapid cutting
2000mm roller infeed table
Variable blade speed inverter & digital display
2 Year parts warranty (1 year labour)
Add to quote
Category:

Everising S330 HE Bandsaw (Replaces the S330 HB-NC)

A popular choice of stockholders, contract cutting, fastening producers and engineering companies worldwide. The Everising S and H range are unsurpassed for performance and reliability over the past 30 years and continue to consistently outperform similar looking products. Loaded with standard features these machine offer superb value for money, and are backed up by an industry leading warranty package.

 S-330 HE

CapacityRound330 mm
CapacitySquare330 x 330 mm
Bundle CuttingWidth280 mm
Bundle CuttingHeight150 mm
Blade Speed20 to 100 m/min (65 to 330 fpm) (INVERTER)
Blade Drive3.7 kW (5hp)
Hyd. Pump0.75 kW (1hp)
Coolant Pump0.1 kW (1/8hp)
Blade Size4115 x 34 x 1.1 mm
Blade TensionHydraulic
Index LengthMultiple400 mm
Machine Weight1800 kg
Floor Space (L x W)2100 x 2200 mm
threaded steel bar
Everising modification for threaded bar

Clamping and cutting of multiple pieces of threaded bar is difficult at the best of times as the pieces tend to rotate during cutting. With our modification we have made a massive improvement for cutting single height rafts. First of all we extend the clamping plate depth on the standard removable bundle vices, second, we add a hydraulic vertical vice on the off cut side of the saw blade, and third, we line the clamping surface with a high grip plastic block.

Everising vice pressure reduction apparatus for bandsaws
Everising S250/300 vice pressure reducer

Kit to add universal vice pressure reduction function, one single valve situated close to the vice reduces pressure to the main and shuttle vice for cutting thin wall sections and tubes, the kit includes a gauge to accurately set and record pressure to be repeated.

Addimist saw lubricant system image
Addimist Bandsaw

Pure oil micro-mist blade lubrication system recommended for cutting tubes and sectional material where flood lubricant loss through the material is a problem. This precision delivery system allows adjustment for the number of pulses per min, and the quantity of each dose. (requires compressed air supply) The standard flood system is retained for cutting solid material and the operator can simply switch between systems.

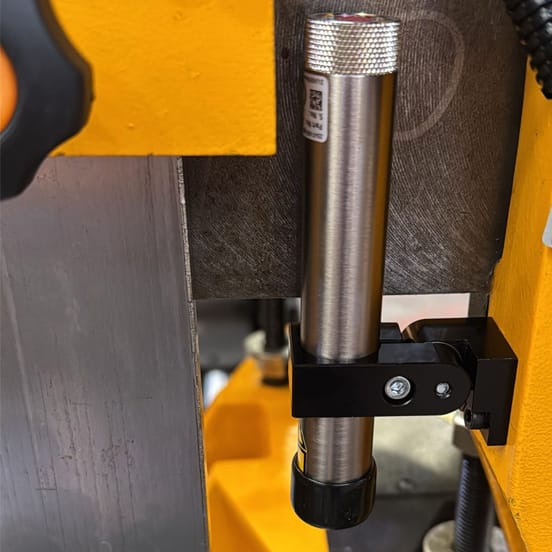

Everising laser for guiding precision cuts
Lase Line

Battery powered German produced laser line

everising control panel
Cutting Control

7″ colour touch screen HMI for entering up to 20 jobs containing multiple cutting lengths and piece qty

Image of the everising swarf removal system. A large screw that pushes out swarf waste into a bucket below.
Swarf Conveyor

A screw type conveyor with ultra reliable hydraulic motor concealed to for maximum protection.

Everising bundle vice image
Bundle vices

Detachable hydraulic vertical bundle vices (145 x 190 mm capacity)

Everising variable band saw blade control panel
Blade Control

Variable blade speed with inverter and digital display
20 to 100 m/min (65 to 330 fpm)

Everising full stroke vice image painted yellow
Vice Details

Full stroke hydraulic vices. The feeder vice is Y axis floating to help with bent material stock. The front vice is split to clamp both sides of the saw blade eliminating any off-cut nib. All vices have replaceable hardened jaw plates.

Everising blade tension system
Blade Tensioning

Hydraulic blade tensioning system

Everising full stroke vice image painted yellow
Rapid Cycle Times

Fitted with a mechanical material height detection device which allows automatic fast approach before switching to the selected cutting rate. After the cut the saw head returns only to a few mm above the stock to reduce cycle times.

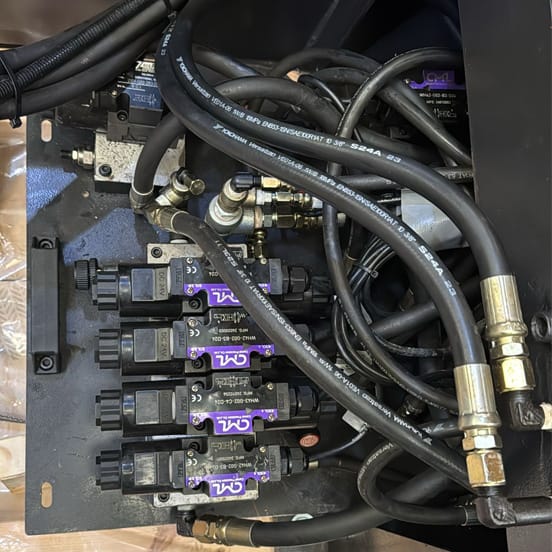

Drawer showing easy access to hydraulics for saw maintenance.
Easy Maintenance

Pull out drawer with hydraulic system for easy access and maintenance

Additrack infeed roller tables for metal bars
Additrack 2M

Roller support table 2000 mm long with 350 mm or 500 mm wide rollers.
